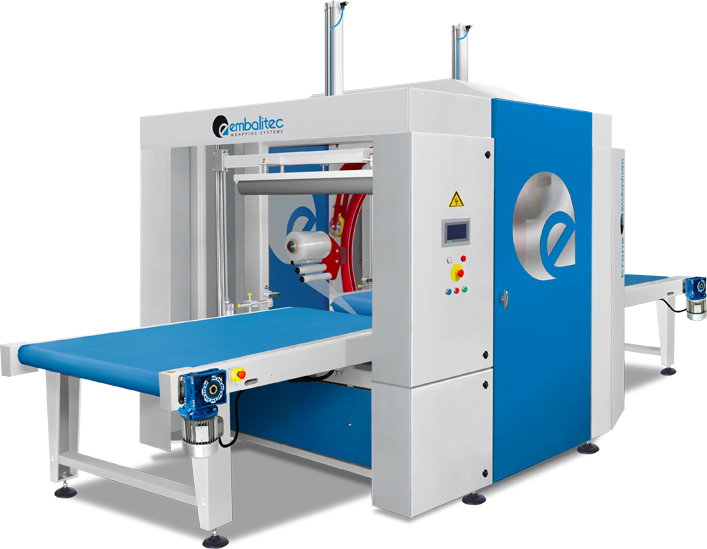

Automatic wrapping machine with rotating crown to apply stretch film horizontally to goods.
The Krone Horizontal wrapping machine consists of a rotating crown for applying stretch film, this process is done fully automatically.
The automatic model is equipped with power-driven conveyor belts, product-detection photocells, crown rotation and conveyor speed controller and an automatic cutting system. |

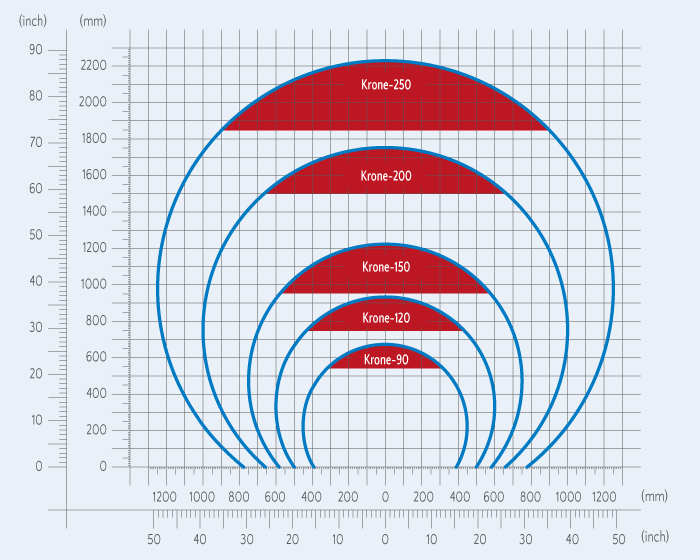

Workable dimensions
Distinctive features
Crown
The KRONE machine is equipped with machined aluminum crown to ensure maximum accuracy and continuity of packed during rotation. It is mounted on rubber wheels with ball bearings that transmit traction and provide greater stability and reliability at all times.
Reel holder
The reel holder is equipped with a quick roll change system that facilitates the operator’s work and minimizes machine downtime, increasing productivity. Is further provided with a dual brake ensuring reliability and accuracy in stop maneuver during the packaging process or the reel change.
Clamp and cut
The clamp and cutting module is designed to provide maximum efficiency and robustness in any packaging situation. The module consists of a clamp that holds the plastic and a blade cutting. Action accuracy is ensured by two pneumatic cylinders.
Pneumatic pressure
The pneumatic pressure ensure vertical stability of the products during packaging. Depending on the characteristics of the product to be packaged pressure rollers may be of different materials such as PVC, nylon or polyurethane.
Control panel
The control panel is integrated in the structure. Its position is optimal for handling packed features and offers excellent working ergonomics and ease of access for handling. It incorporates an intuitive touch screen with a menu that guides the operator step by step through the process of packing.
Dimensions
Models | Krone-90 | Krone-120 | Krone-150 | Krone-200 | Krone-250 |
A | 2300 mm | 2710 mm | 3370 mm | 4230 mm | 5310 mm |
B | 800 mm | 800 mm | 950 mm | 850 mm | 750 mm |
C | 1712 mm | 1972 mm | 2312 mm | 2792 mm | 3322 mm |
D | 2210 mm | 2415 mm | 2700 mm | 3050 mm | 3550 mm |
E | 600 mm | 800 mm | 1300 mm | 1300 mm | 1300 mm |
F | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm |
G | 2400 mm | 2400 mm | 2400 mm | 2400 mm | 2400 mm |
H | 3172 mm | 3172 mm | 3172 mm | 3172 mm | 3172 mm |
MODELS | Krone-90 | Krone-120 | Krone-150 | Krone-200 | Krone-250 |
CROWN DIAMETER | 1000 mm | 1300 mm | 1600 mm | 2100 mm | 2600 mm |
ROTATING SPEED | 130 rpm | 120 rpm | 110 rpm | 50 rpm | 45 rpm |
TRANSPORT SPEED | 0-35 m/min | 0-30 m/min | 0-25 m/min | 0-15 m/min | 0-10 m/min |
ELECTRIC TENSION | 400 V. 3 Ph | 400 V. 3 Ph | 400 V. 3 Ph | 400 V. 3 Ph | 400 V. 3 Ph |
INSTALLED POWER | 2,2 kW | 2,2 kW | 2,2 kW | 2,2 kW | 2,2 kW |
