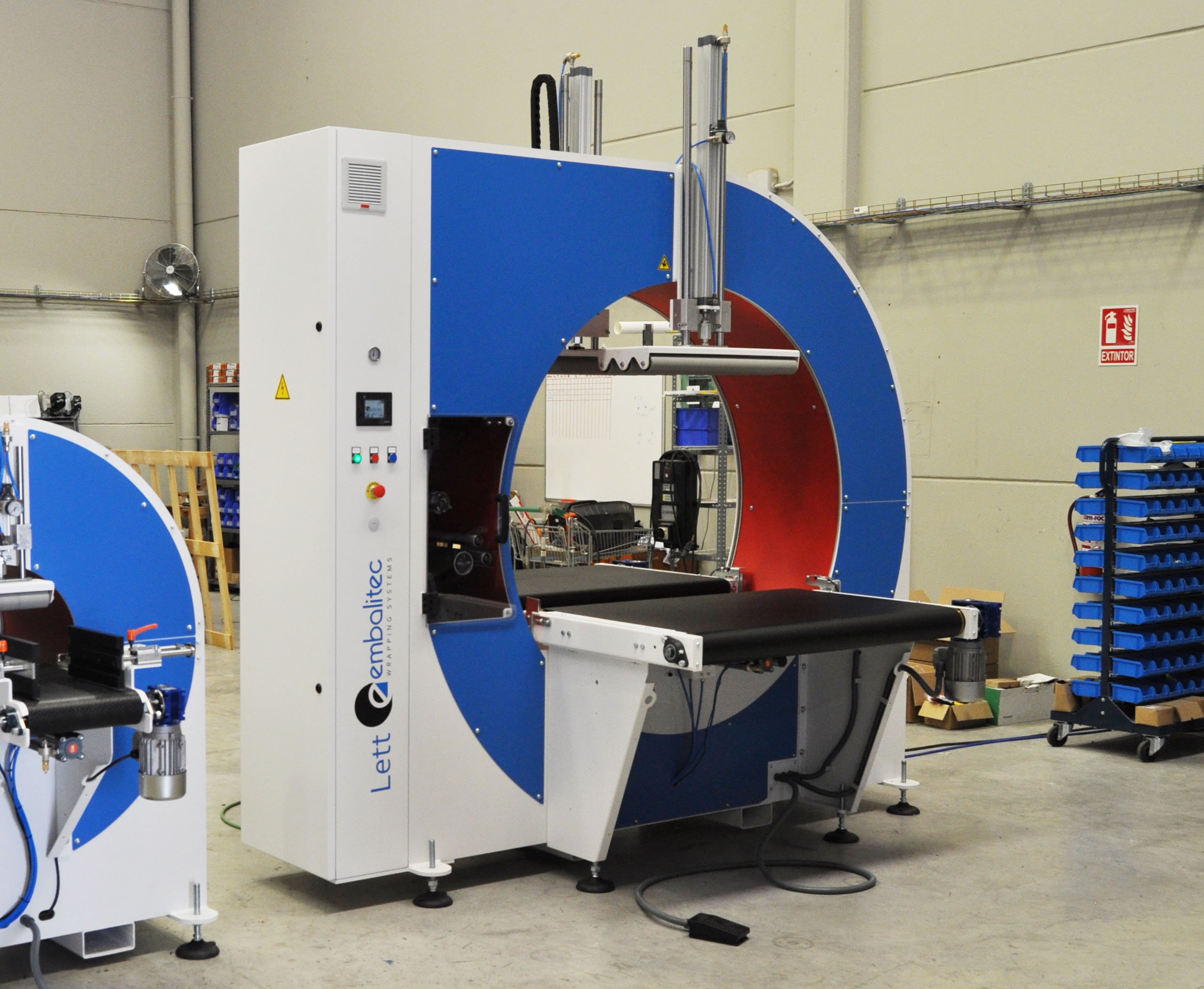

EMBALITEC LETT SERIES
EMBALITEC LETT SERIES
Automatic wrapping machine with rotating crown to apply stretch film for continuous wrapping or with strips. This packaging system is very economical.

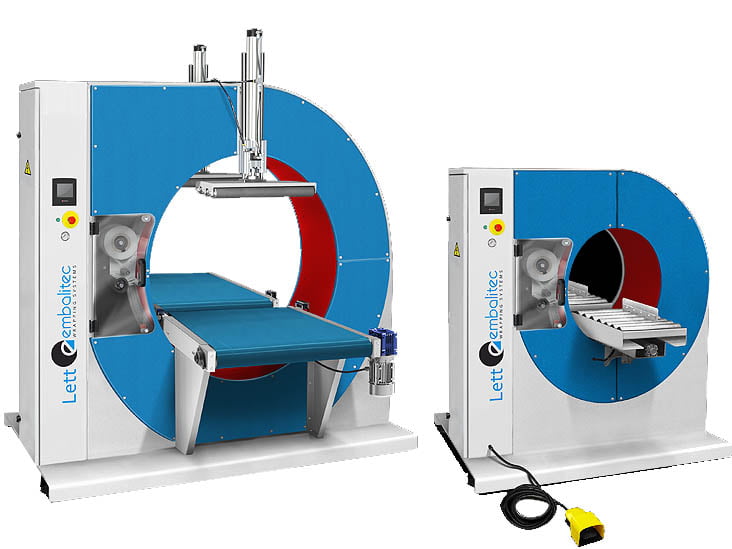

The Lett Series consists of two types of machines: The semi-automatic (1) and the automatic (2).
The semi-automatic model is operated the crown by means of a pedal, but the cutting system is fully automatic. The wrapping process is simple and can be carried out by a single person. | |
The automatic model is equipped with power-driven conveyor belts, product-detection photocells, crown rotation and conveyor speed controller and an automatic cutting system. |
Distinctive features
Crown
The Lett machine is equipped with machined aluminum crown to ensure maximum accuracy and continuity of packed during rotation. It is mounted on rubber wheels with ball bearings that transmit traction and provide greater stability and reliability at all times.
Reel holder
Equipped with a two brake system that ensures the reliability and accuracy in the stopping operation during the wrapping process and the reel changing.
Clamp and cut
The clamp and cutting module is designed to provide maximum efficiency and robustness in any packaging situation. The module consists of a clamp that holds the plastic and a blade cutting. Action accuracy is ensured by two pneumatic cylinders.
Safety ring
The machine has a safety ring with a film slot to ensure maximum safety levels in the Crown.
Pneumatic pressure
The pneumatic pressure ensure vertical stability of the products during packaging. Depending on the characteristics of the product to be packaged pressure rollers may be of different materials such as PVC, nylon or polyurethane.
Control panel
The control panel is integrated in the structure. Its position is optimal for handling packed features and offers excellent working ergonomics and ease of access for handling. It incorporates an intuitive touch screen with a menu that guides the operator step by step through the process of packing.

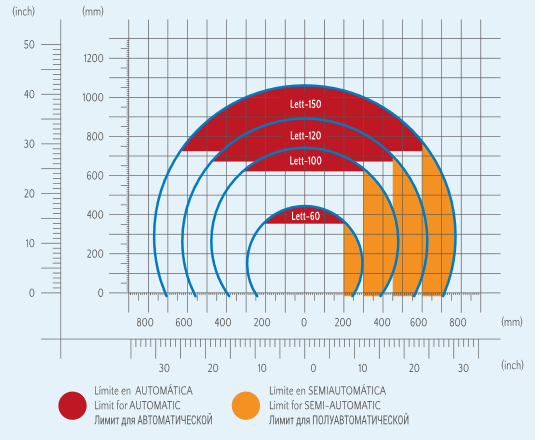

Working Dimensions
Dimensions
Lett-60 | Lett-100 | Lett-120 | Lett-150 | |||||
AUTO | SEMI | AUTO | SEMI | AUTO | SEMI | AUTO | SEMI | |
A | 1920 mm (+/-50 mm) | – | 2445 mm (+/-50 mm) | – | 2545 mm (+/-50 mm) | – | 2645 mm (+/-50 mm) | – |
B | 885 mm (+/- 50 mm) | 885 mm (+/- 50 mm) | 885 mm (+/- 50 mm) | 885 mm (+/- 50 mm) | ||||
C | 1796 mm (+/- 50 mm) | 2104 mm (+/- 50 mm) | 2204 mm (+/- 50 mm) | 2379 mm (+/- 50 mm) | ||||
D | 1800 mm | 2200 mm | 2400 mm | 2700 mm | ||||
E | 400 mm | 600 mm | 900 mm | 1200 mm | ||||
F | 1600 mm | 2000 mm | 2000 mm | 2000 mm |
MODELS | Lett-60 | Lett-100 | Lett-120 | Lett-150 | ||||
AUTO | SEMI | AUTO | SEMI | AUTO | SEMI | AUTO | SEMI | |
CROWN DIAMETER | 680 mm | 1080 mm | 1280 mm | 1580 mm | ||||
REEL FILM WIDTH | 125 / 250 mm | 250 mm | 250 mm | 250 mm | ||||
ROTATION SPEED | 126 rpm | 64 rpm | 55 rpm | 48 rpm | ||||
CONVEYOR SPEED | 0-35 m/min | 0-25 m/min | 0-14 m/min | 0-14 m/min | ||||
POWER DRIVEN CONVEYOR | X | – | X | – | X | – | X | – |
INFEED AND OUTFEED PRESSURE UNIT | X | – | X | – | X | – | X | – |
PRODUCT PRESENCE PHOTOCELL | X | – | X | – | X | – | X | – |
ELECTRIC TENSION | 400 V. 3 Ph | 400 V. 3 Ph | 400 V. 3 Ph | 400 V. 3 Ph | ||||
INSTALLED POWER | 1,25 kW | 0,75 kW | 2,24 kW | 1,5 kW | 2,24 kW | 1,5 kW | 2,24 kW | 1,5kW |
