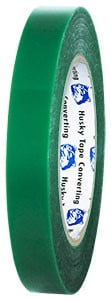

#2500 SINGLE SIDED POLYESTER SPLICING AND MASKING TAPE

#2500 Single Sided Polyester Splicing And Masking Tape

SKU: C2500 Category:

Product information:
SINGLE SIDED POLYESTER SPLICING AND MASKING TAPE

Product Features:

  • Holds and splices silicone coated materials
  • Used for gold finger plating on circuit boards
  • Silicone adhesive holds release papers
  • For masking and surface protection
  • Ideal for high temperature masking to 180 deg C.
  • Suitable for tin and lead stripping
  • Sizes available to order

Technical data:

AdhesiveSilicone
BackingPolyester
Total Thickness0.1MM
Max Width960MM
ColourGreen
Tensile Strength9KG per 25.4MM
Adhesion to steel1.1KG per 25.4MM
Temperature Resistance180 deg C
Elongation80%



Sizing Options:

CodeDescriptionCtn Qty
C2500-066MM X 66M #250006 SINGLE SIDED POLYESTER SPLICING AND MASKING TAPE144
C2500-099MM X 66M #250009 SINGLE SIDED POLYESTER SPLICING AND MASKING TAPE96
C2500-1212MM X 66M #250012 SINGLE SIDED POLYESTER SPLICING AND MASKING TAPE72
C2500-1818MM X 66M #250018 SINGLE SIDED POLYESTER SPLICING AND MASKING TAPE48
C2500-2424MM X 66M #250024 SINGLE SIDED POLYESTER SPLICING AND MASKING TAPE36
C2500-3636MM X 66M #250036 SINGLE SIDED POLYESTER SPLICING AND MASKING TAPE24
C2500-4848MM X 66M #250048 SINGLE SIDED POLYESTER SPLICING AND MASKING TAPE18
