The Synthesi  is an Italian made Friction Brake Pallet Wrapping Machine, It features a 2500mm wrapping height, 3000kg turntable capacity.

The Synthesi is a low maintenance Italian Made Pallet wrapping Machine, built by Atlanta Stretch SPa, and distributed by Melbpack. It is an economical and easy to use wrapping machine, with many features for wrapping. The Synthesi comes with a height detection photocell for semi automatic wrapping of pallets.

Video

(Please note video features nonstandard lowprofile turntable+ramp, standard height is 76mm)

Feature Summery.

• Automatic 1 Button Push start
• Heavy Duty electromagnetic Brake. 0-100% Stretch.
• Automatic pallet Height detection
• 3 Fully adjustable Auto programs, Plus manual mode of operation.
• 10 adjustable parameters, see below for complete list.
• 3000kg Capacity
• 2500mm Wrapping height
• 1650mm diameter turntable for Australian and export pallets.
• Made in Italy by Atlanta Stretch.
• Built with German Lenze electrical components.

PARAMETERS ADJUSTABLE FROM CONTROL PANEL:

• Bottom pallet wrapping rounds from 1 to 10
• Top pallet wrapping rounds from 1 to 10 Rotation speed adjustable from 5 to 12 rpm
• Spool carriage speed upwards and downwards independently adjustable
• Spool carriage speed upwards speed from 1,3 up to 5,4 m/min
• Spool carriage speed downwards speed from 1,3 up to 5,4 m/min
• All function parameters settable on display
• Photocell sensing delay

BASIC CYCLES SELECTABLE FROM CONTROL PANEL:

• Double cycle (Upwards / Downwards)
• Single cycle (Only upwards or only downwards)
•  Top sheet cycle
• Wrapping cycle with altimeter (Photocell Off)
• Wrapping cycle with pre-set starting and stopping height
• 3 + 1 selectable wrapping programs
• Wrapping cycle with manual drive by push-buttons of the carriage Up / Down
• Push-buttons for manual function

TECHNICAL FEATURES:

• Turntable Ø 1650 mm
• Max. load weight: 2000 Kg
• Wrapping height (Pallet included) 2500 mm
• Base-frame turntable height 75mm
• Load height sensing photocell and altimeter (without photocell with pre-set height)
• Acceleration / Deceleration ramps controlled by frequency changer
• Spool carriage upwards/downwards speeds controlled by frequency changer
•  Safety carriage foot protection
•  Beeper at cycle start and phase stopping at cycle end
• Emergency mushroom & reset push-button according to latest CE Norms
•  Adjustable change coil, carriage service height
• Safe enclosed mast design with chain drive.

POWER REQUIREMENTS

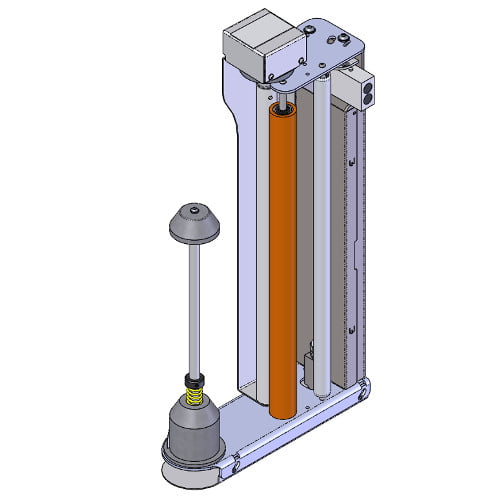

FILM CARRIAGE FEATURES:

The Synthesi Features and Electromagnetic Brake system, this is a more reliable system than the standard friction brake design, and easy to adjust from the control panel accurately.

• Electromagnetic Braking System
• On return / tension roller
• Electronically adjustable from control board
• Film reel specs Max. outside diameter Ø 250 mm – Height = 500 mm
• Core Ø76mm
• Standard power supply: 230 V – 1PH+N+PE – 50/60 HZ
• Total installed power: 0,75 KW
• Mounted on opposite side to the control panel to keep users clear of it during operation.

WARRANTY INFO

• See quote for details.
• Does not require expensive 6 monthly service to maintain warranty like Chinese made machines do

LAYOUT
