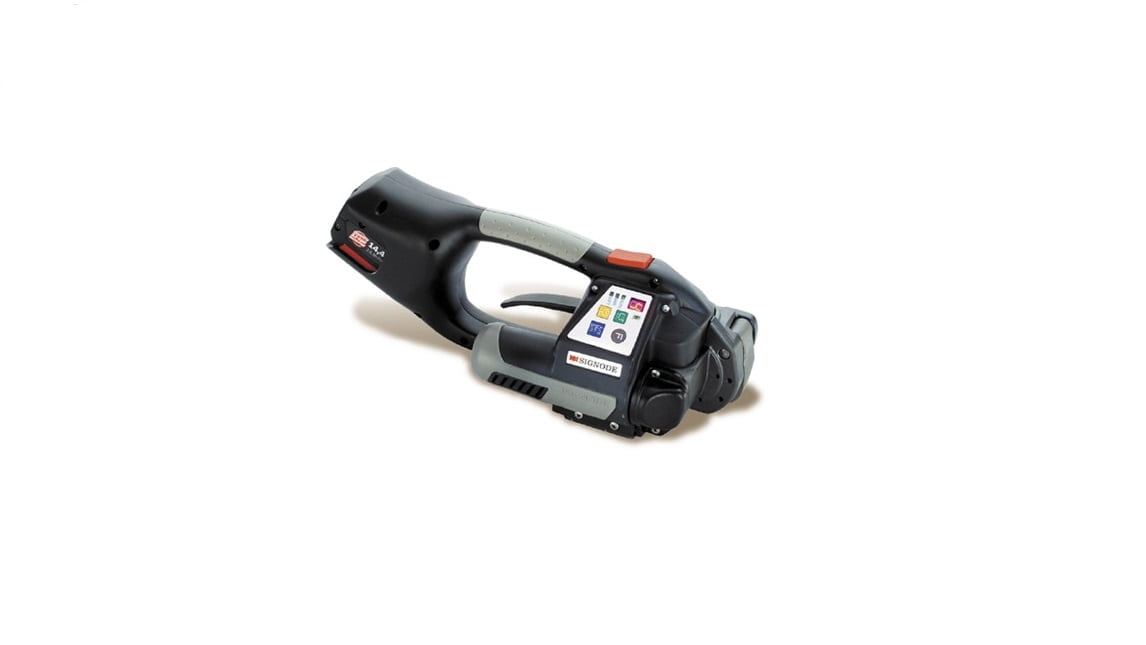

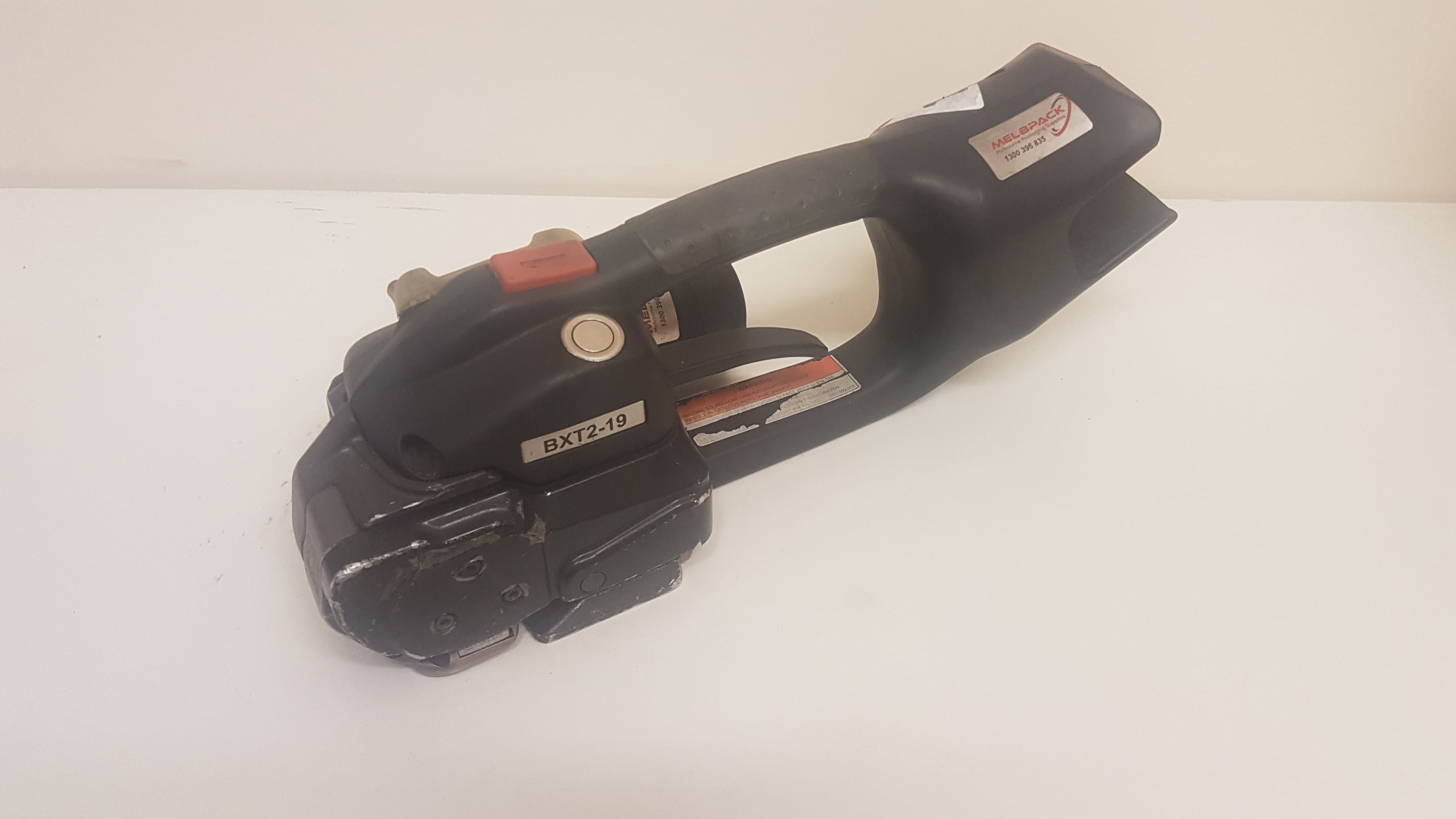

Signode BXT2 Strapping tool
Signode BXT2 Strapping tool
While the Singode BXT2 is nolonger available as new Melbourne packaging supplies are capable of repair your BXT2 strapping tool. Melbpack over competitive repairs on BXT2s. We have a range of genuine, aftermarket and second hand parts available.
Call us for a quotation or repairs or parts today.
Second hand spares, we have many tubs and parts cases of these.
New Signode BXT2 Strapping tool parts.
Melbourne packaging supplies, repair a wide range of strapping tools, give us a call if you want to reassess your strapping tool maintenance, we’ve cut many repair prices for maintenance in half. Many service companies will have you replacing ware parts years before due. we can give you an honest assessment for the repairs of your manual or battery powered strapping tools.
If you need the manual and parts list for the BXT2 click here.
Design, function and operation
The BXT2 provides all the benefits of Signode’s proven battery powered tool range – but is faster, easier to use and more productive than ever.
Designed to deliver low cost of ownership, consistency and reliability, BXT2 features ‘Hypercharge Technology’ enabling the BOSCH battery to be charged at any time, with just a 15 minute charge restoring 75-80% of the battery’s total power. Additionally, BXT2 maintains strap tension levels, to the last cycle.
The BXT2 is extremely comfortable to use due to its ergonomic and lightweight design, yet copes easily with the most demanding industrial applications. All tensioning and sealing operations are controlled by electronic push buttons, making it quick and simple to operate.
The enhanced tension system is extremely efficient and capable of strapping smaller packages, whilst the patented automatic welding system offers a choice of manual, semi-automatic and fully automatic operation.
Strap PP / PETStrap
Width 9-16mm or 16 -19mm
Strap Thickness 0.5 – 1.0mm
Joint Strength 75-85%
Tension Range 0 – 2500 N or 0-4000N
Tension Speed 220 mm/sec
Weight 3.9 kg
Dimensions LxWxH 334x138x148mm
Battery Type BOSCH 14.4V 2.6Ah Li-Ion or 18v 4AH Li-Ion
Cycles per Charge 200 – 400
Charger BOSCH AL 1860 CV
Charging Time 15-30mi
Brushless ‘wear-free’ technology‘
Wear-free’ brushless motor system provides up to 400 strap cycles per battery chamrge.
Advanced lithium-ion battery power
The BOSCH lithium-ion battery can be charged without damage at any time. It continues to give full power until the last strapping cycle, whilst the tool’s robust design protects the battery against accidental damage.
Automatic Welding System
BXT2 offers three operational modes: manual tensioning plus push button welding; semi-auto with two push buttons for tensioning and welding; and fully-auto where a single button initiates the complete process.
Electronic control
Strap tension and weld strength are easily adjusted using electronic controls. Strap tension levels and weld cycle times can be preset to ensure consistent performance and eliminate potential for damage.
Fast, accurate weld system
The strap welding system uses Signode’s proven friction sealing method which provides significantly higher productivity, whilst reducing component wear.
Double strap insertion
Simple two strap loading, speeding up cycle times
.Hypercharge technology
15 minutes charging restores the battery to 75-80% charge status.
Full charging takes just 30 minutes. An active cooling system ensures the battery can’t overheat, increasing battery life.
