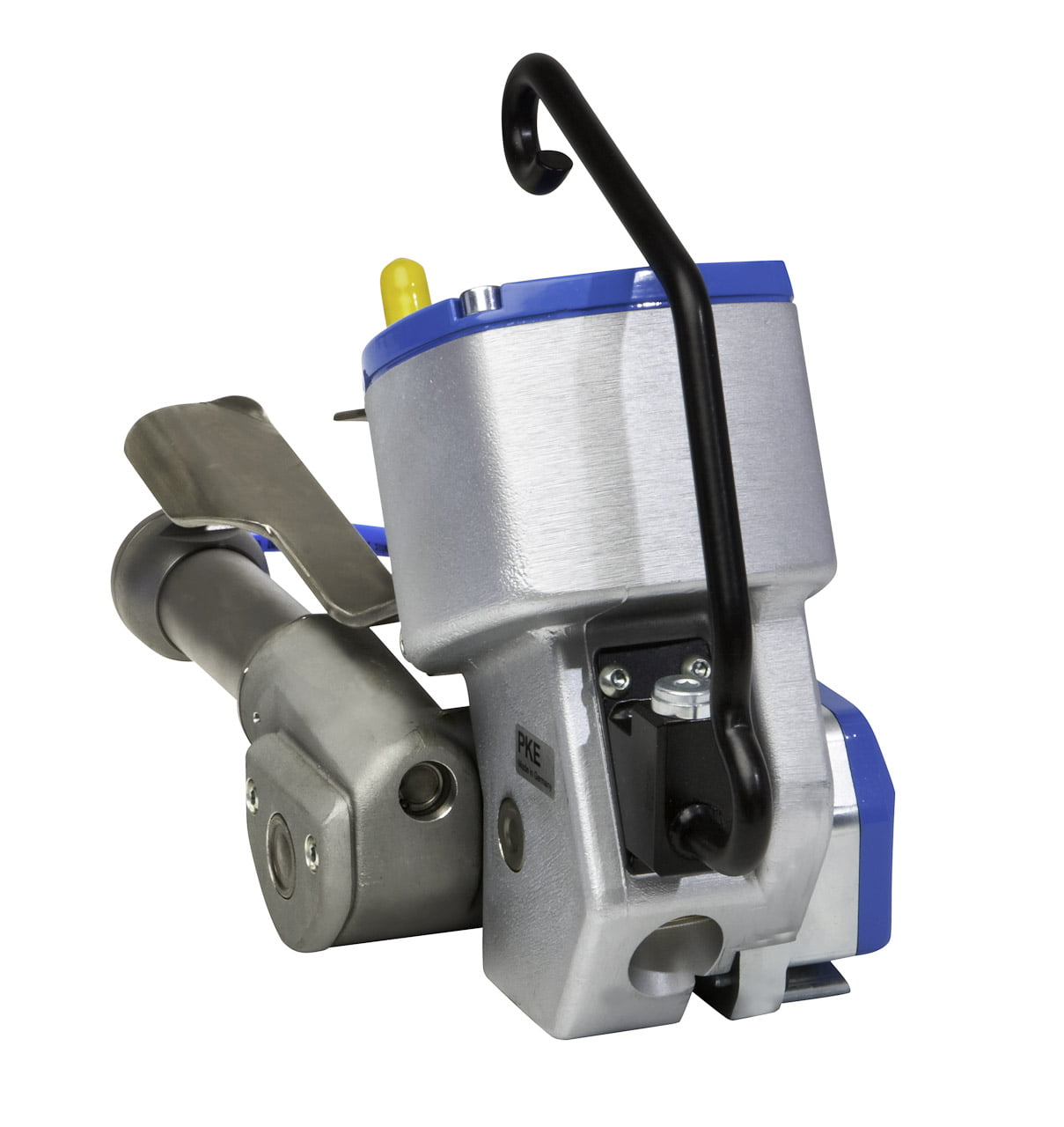

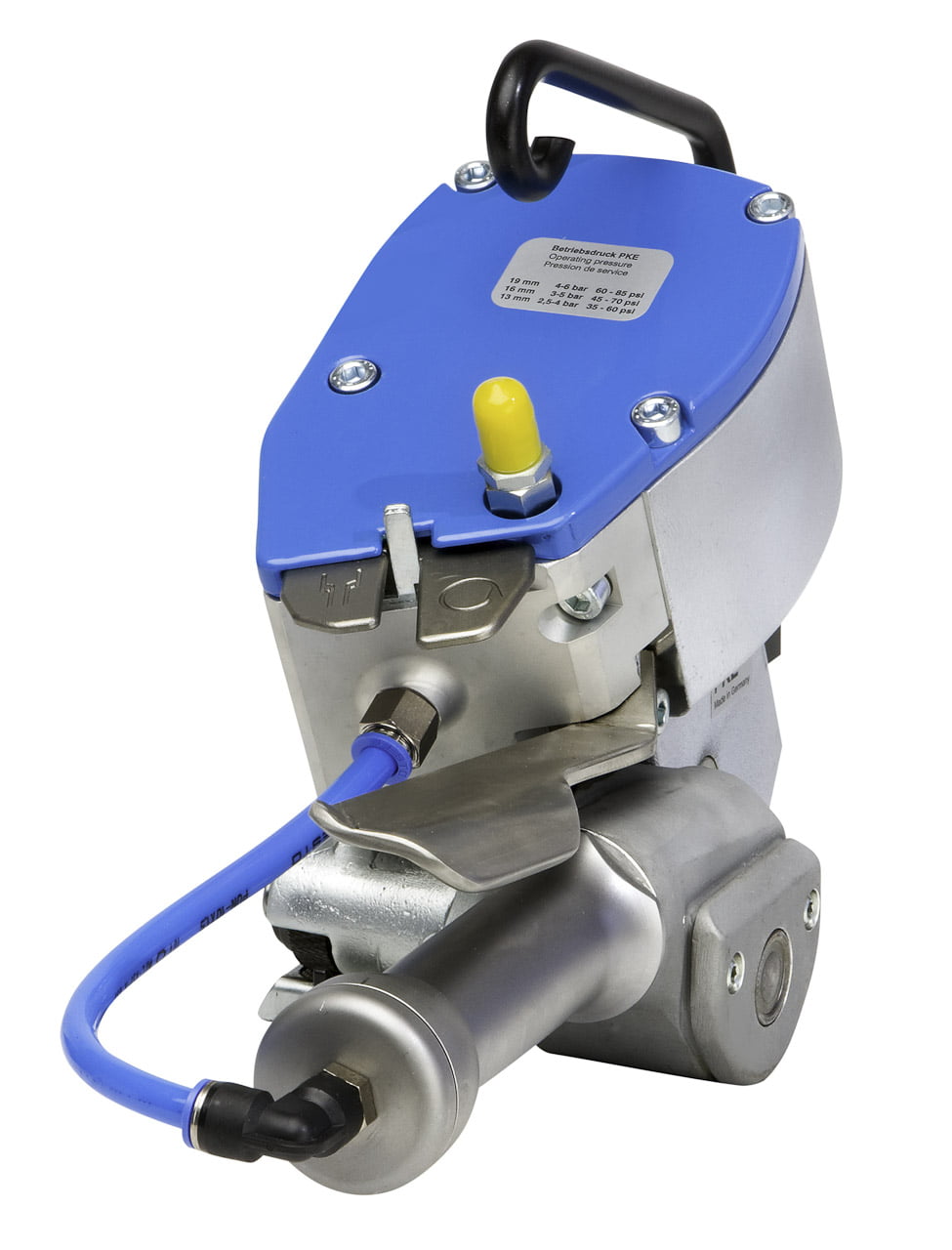

TITAN PNEUMATIC STRAPPING TOOL PKE-HD

Titan Pneumatic Strapping tool PKE-HD specialises in straps of 19mm width with a fully pneumatic function delivering high and uniform strap tension ensuring the highest reliability.

SKU: ADL2014 Category:

Product information:
Introducing the PKE-HD, TITAN introduces an unparalleled hand-held tool designed for both standard and high-performance straps, with dimensions extending up to 19 x 0.8 mm. This tool stands unmatched in the market.
As the larger sibling to the PKE and a close relative to the HKE-HD, the PKE-HD seamlessly combines the pivotal attributes of the E-Series with a comfortable, fully pneumatic operation, focusing specifically on accommodating 19 mm width straps. This specialization ensures its effectiveness even in challenging scenarios such as securing sheet metal packages. The sealless joint, employing three notches as pioneered by TITAN, firmly unites what rightfully belongs together.

Advantages

  • High and uniform strap tension ensures the highest reliability.

Specification:
PKE-HD 19MM STRAPPING TOOL

Technical data:

Kind of drive (Tensioning)Pneumatic
Tension forceUp to 7,000 N
Kind of drive (Sealing)Pneumatic
Strap feeding speed0.15 m/s

0.5 ft/s

Dimensions391x163x270mm (LxWxH)

15.4 x 6.4 x 10.6″ (L x W x H)

Weight11.4KG
Air PressureMax. 6 bar flow pressure
Air consumption (During tensioning)21.18 ft³ / min.
Type of strapSteel strap
Strap width19mm
Strap thickness0.61 -0.78mm
Kind of sealSealless joint
Sealing strength (Depending on strap quality, strap dimensions)Approx. 75% of the strap breaking load



View the rest of our range and frequently asked questions about pneumatic steel strapping hand tools

View product specifications
View product manual
