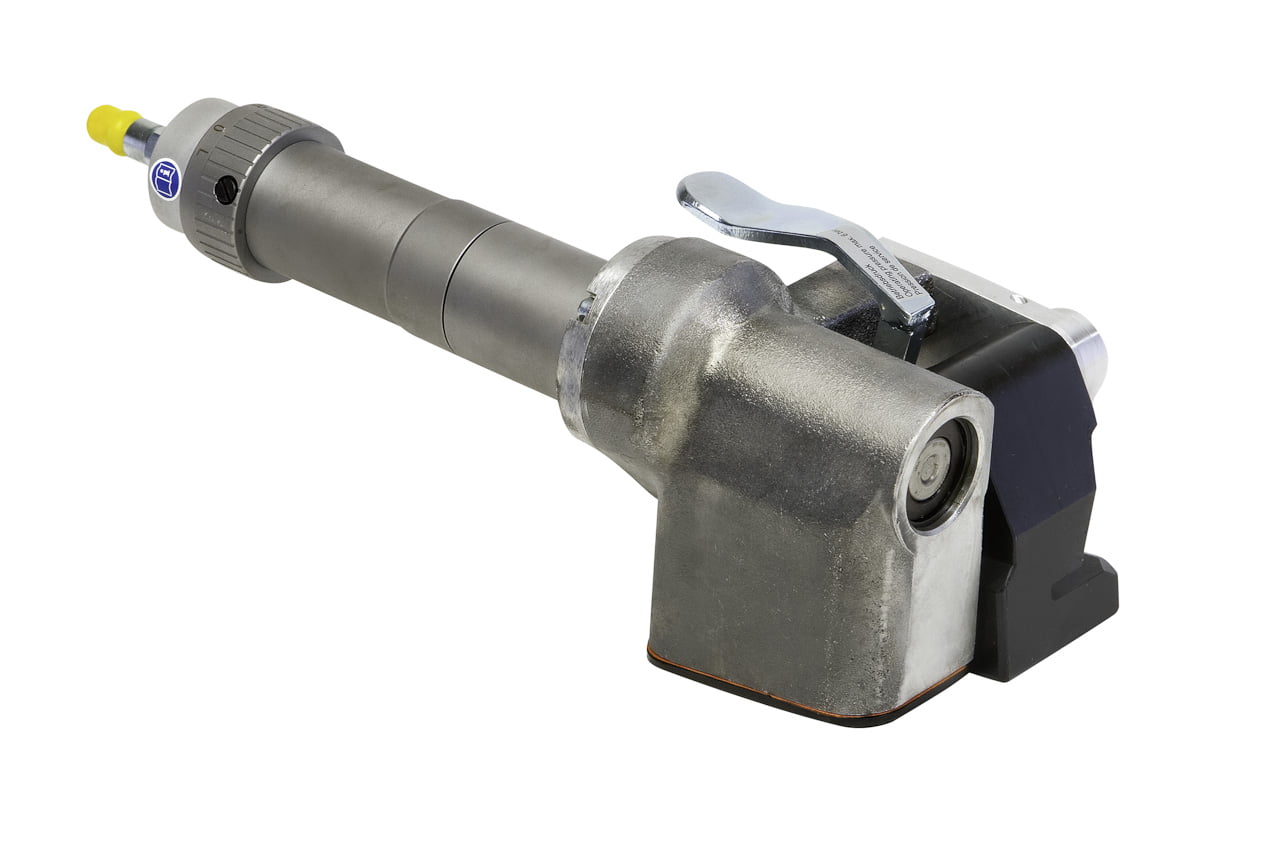

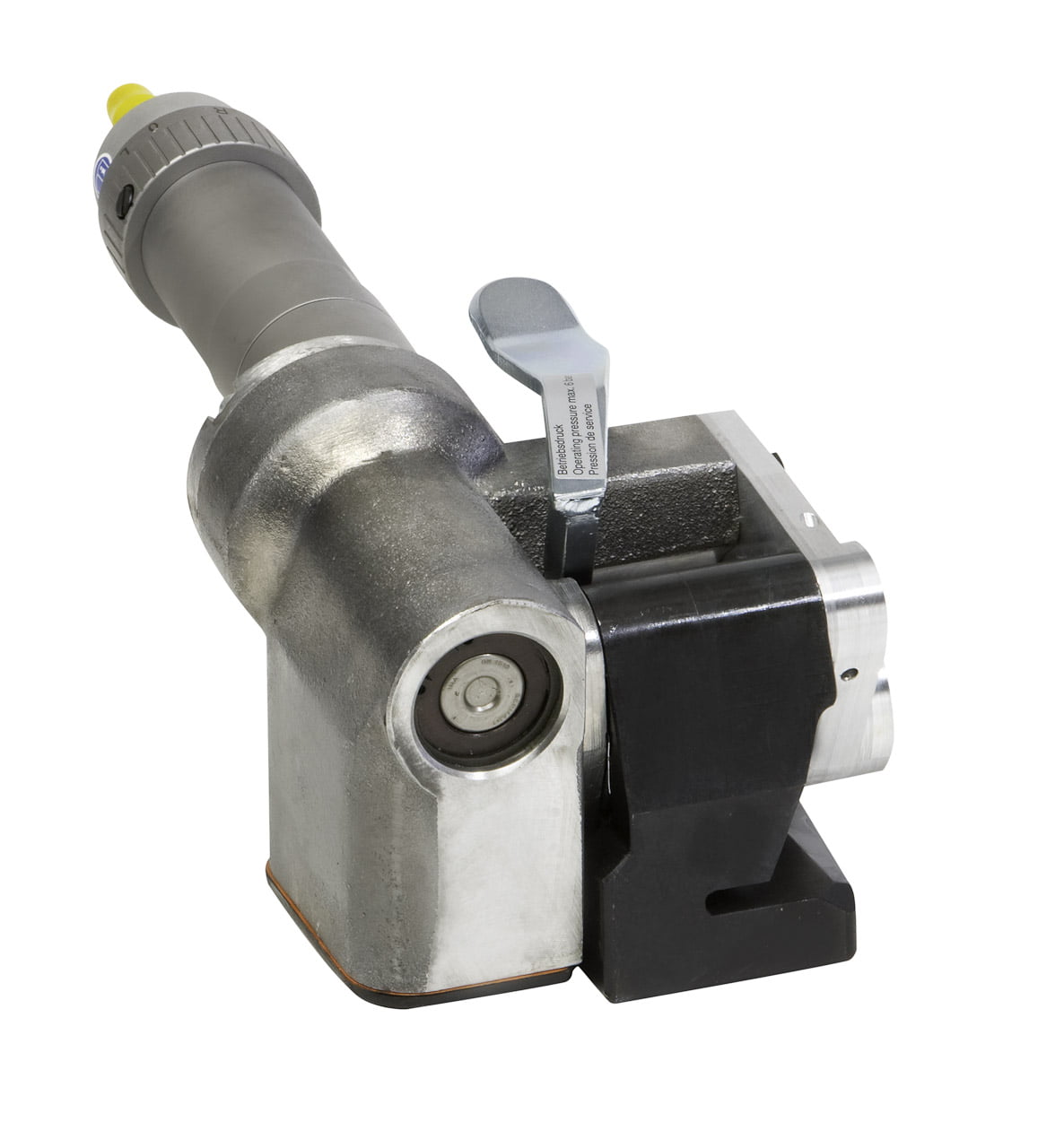

TITAN PNEUMATIC TENSIONER STRAPPING TOOL – PLC
TITAN PNEUMATIC TENSIONER STRAPPING TOOL – PLC
The Titan Pneumatic Tensioner Strapping Tool deliverers High force for extreme applications
Product information:
The principle of lifting and lashing necessitates highly specific characteristics from both the strap and the strapping tool.
In brief, the straps are employed to hoist loads. Given that the entirety of the loaded cargo’s weight is borne by the strap alone, a substantial strap thickness of 1.45 mm becomes imperative. Consequently, the strapping functions as a slinging apparatus. Conversely, lashing involves fastening the load units together.
Because this procedure holds significant importance in shipping contexts, the tensioner PLC finds utility in securing steel coils within a vessel’s hold. Notably, this mode of load securing demands an exceptional tensioning force, a role for which the PLC proves dependable, capable of delivering up to 20,000 N of force on strap widths of 32 mm.
The PLC exclusively operates as a tensioner, working in tandem with sealers SCR or DCR, which employ crimp seals. These seals permit controlled slippage of the strap within the seal, consequently acting as shock absorbers.
Advantages
- High force for extreme applications
Specification:
TITAN PNEUMATIC TENSIONER STRAPPING TOOL 32MM – PLC
Technical data:
Kind of drive (tensioning) | Pneumatic |
Tension force | 20,000N |
Kind of drive (Sealing) | Pneumatic |
Dimensions | 399x120x140mm (LxWxH) 12.6X4.7×5.5” (LxWxH) |
Weight | 8KG |
Air pressure | Max. 6 bar flow pressure |
Air consumption (during tensioning) | 21.18 ft³ / min. |
Type of strap | Steel Strap |
Strap Width | 32mm |
