Lybra -Rotating arm Palletwrapper
Lybra -Rotating arm Palletwrapper

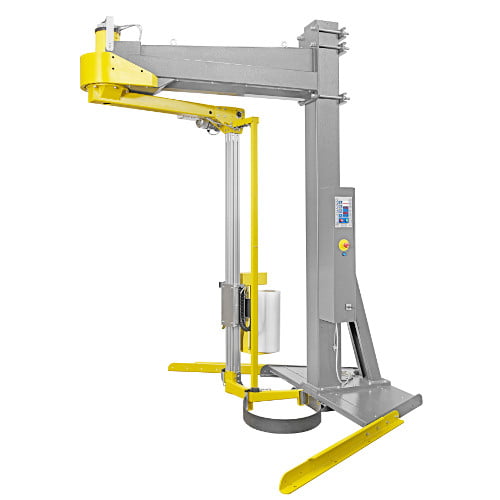

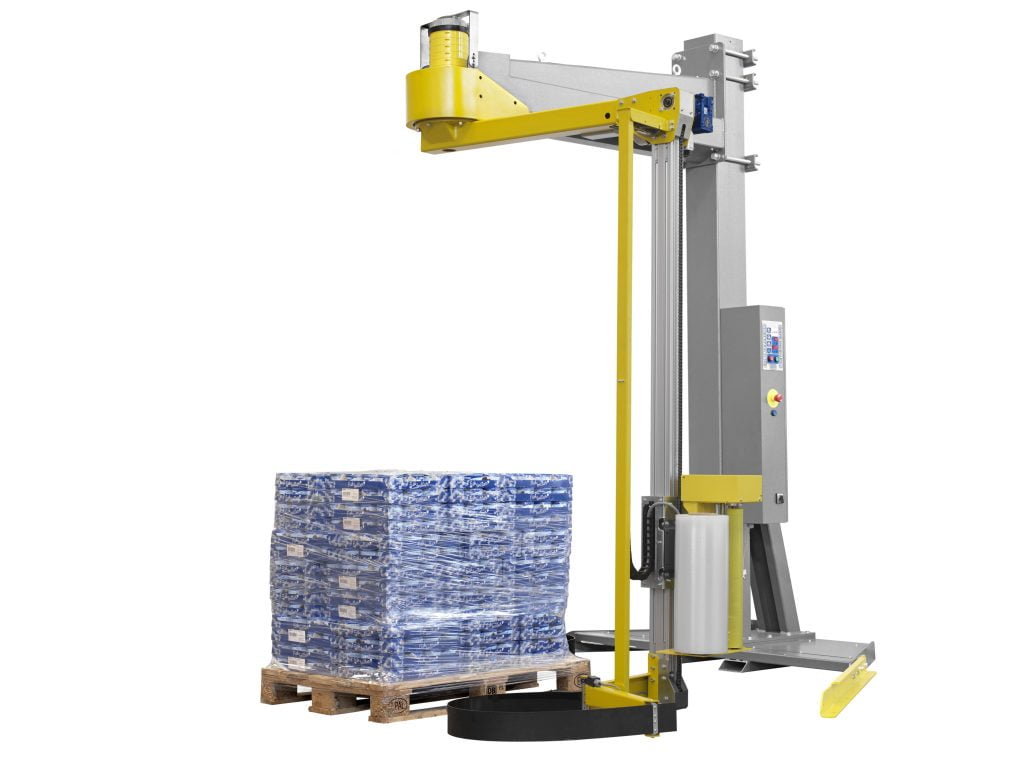

Compact, high performance rotating arm machine for wrapping pallets with stretch film. Reliable, robust construction.
Feature Summery.
- Automatic 1 Button Push start
- Equipable with, friction brake, electromagnetic brake, PRS, power roller stretch or PS, power stretch. Carraiges.
- Automatic pallet Height detection
- Unlimited weight capacity.
- Range of adjustable parameters, see below for complete list.
- 2500mm Wrapping height

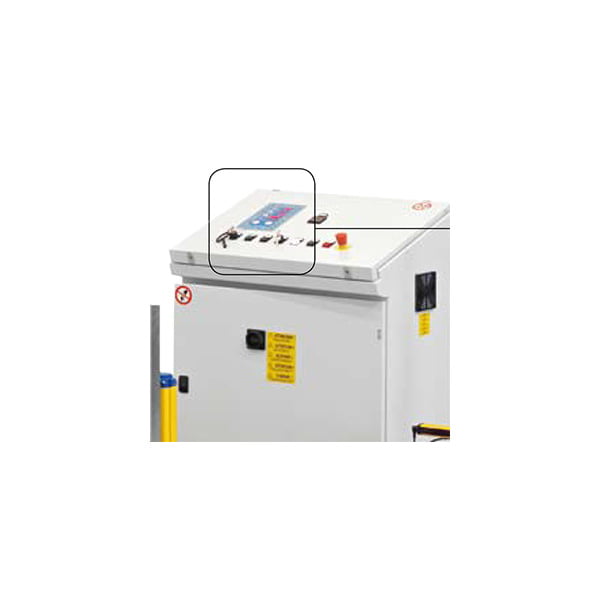

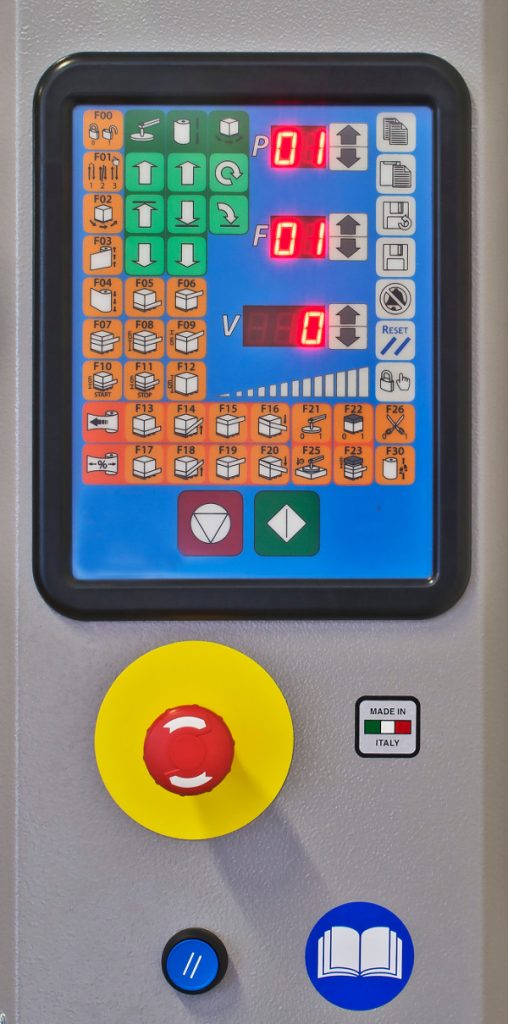

PARAMETERS ADJUSTABLE FROM CONTROL PANEL:
- Top pallet wrapping rounds from 1 to 10
- Bottom pallet wrapping rounds from 1 to 10
- Rotation speed adjustable from 5 to 12 rpm
- Spool carriage speed upwards and downwards independently adjustable
- Spool carriage speed upwards speed from 1,3 up to 5,4 m/min
- Spool carriage speed downwards speed from 1,3 up to 5,4 m/min
- Photocell sensing delay
- All function parameters settable on display
- Weight of film used (Option on PRS – PS)
- Key block
BASIC CYCLES SELECTABLE FROM CONTROL PANEL:
- 99 Storable wrapping programs
- Double cycle (Upwards/Downwards)
- Single cycle (Only upwards or only downwards)
- Top sheet cycle
- Wrapping cycle with altimeter (Photocell Off)
- Wrapping cycle with start and stop height pre-programmed
- Wrapping cycle with reinforcement and settable number of wraps
- Wrapping cycle with step rising of spool carriage
- Push-buttons for manual function
TECHNICAL FEATURES:
- Max. load dimensions 1100 x 1300 mm
- Wrapping height (Pallet included) 2500 mm

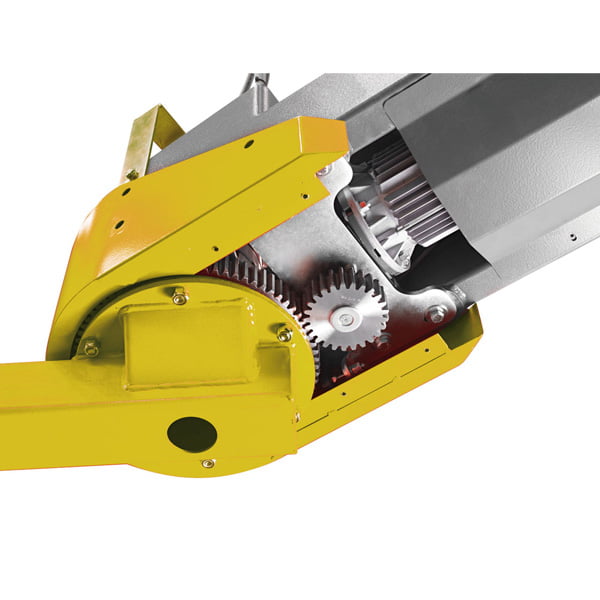

- Rotating arm on heavy duty bearing transport
- Acceleration / Deceleration ramps controlled by frequency changer
- Spool carriage upwards/downwards speeds controlled by frequency changer
- Safety bumper protection against collision
- Beeper at cycle start and phase stopping at cycle end
- Emergency mushroom & reset push-button according to latest CE Norms
POWER REQUIREMENTS
FILM CARRIAGE FEATURES:
The Lybra can be equipped with multiple carriages and if so required upgraded at a later time to another carriage, it can grow with your business.
FM – Mechanical Brake.
Standard entry level brake capable of stretching film 0-100% (1x-2x Yield)
FE – Electromagnetic Brake
Heavy Duty brake capable of stretching film 0-100% (1x-2x Yield)
PRS – Power Roller Stretch
Capable of stretching wrap to predefined rations, 150%, 200% and 250% giving users excellent wrapping efficiency. (x2.5 – 3.5 yield)
PS – Power stretch
Twin motor power stretch unit electronically adjustable ratio’s from 120%-350% (x2.2 – x45 yield)
WARRANTY INFO
- 24 Month Manufacturers by Melbpack.
Availability
Due to its wide range of options available, the Lybra is a special order machine, with a lead time of approx 3 months.
