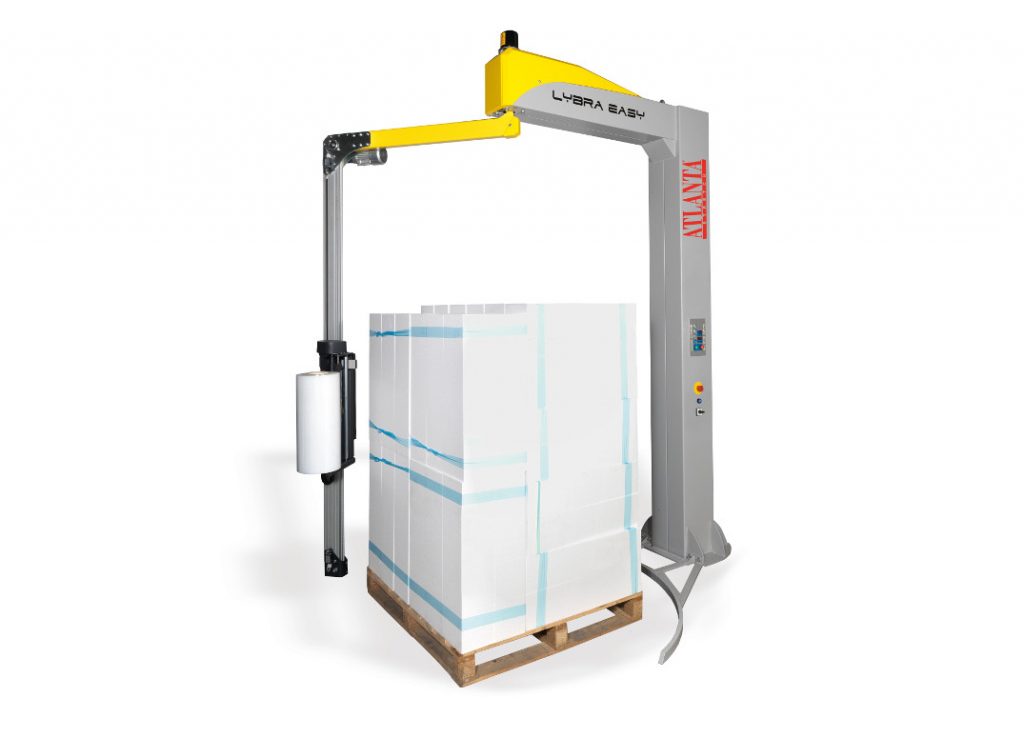

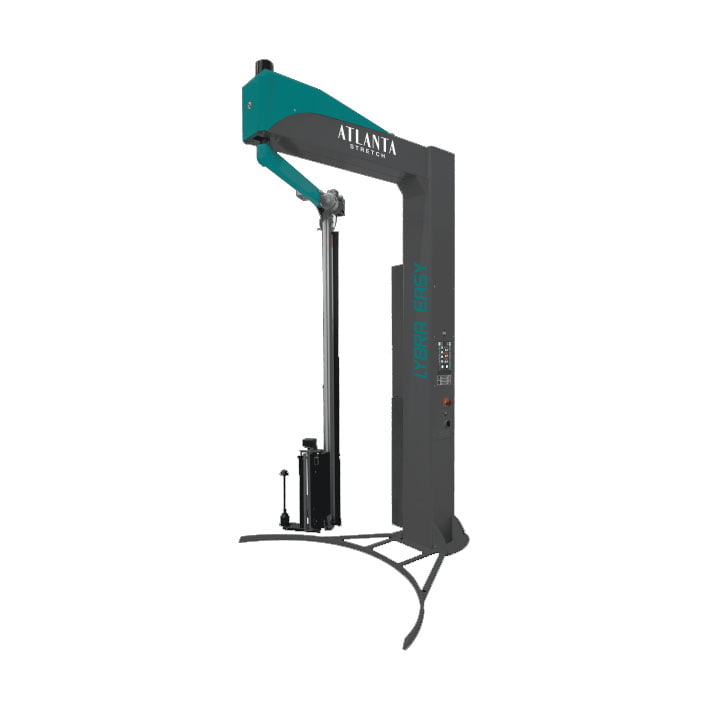

The Lybra Easy rotating arm stretch wrapper is an affordable machine to allow  small to medium users access to a rotating arm machine, affordably priced the Lybra easy is one of the most cost effective rotating arm stretch wrappers on the market.

Advantage

• Easy to use with pallet jacks or Tuggers etc.
• Great for unstable goods
• great for heavy goods
• Good in wet environments (with necessary upgrades)

Easy to use interface
The lybra Easys interface is easy to use and proven .

Want to buy the Lybra Easy rotating arm stretch wrapper?
Please call use to buy or for a quote on the Lybra Easy rotating arm stretch wrapper.

Feature Summery

PARAMETERS ADJUSTABLE FROM CONTROL PANEL:

• All function parameters settable on display
• F02 – Rotation speed adjustable from 5 to 12 rpm
• Spool carriage speed upwards and downwards independently adjustable
• F03 – Spool carriage speed upwards speed from 1,3 up to 5,4 m/min
• F04 – Spool carriage speed downwards speed from 1,3 up to 5,4 m/min
• F05 – Bottom pallet wrapping rounds from 1 to 10
• F06 – Top pallet wrapping rounds from 1 to 10
• F09 – Photocell sensing delay
• F62 – Comfort height for easy coil change

BASIC CYCLES SELECTABLE FROM CONTROL PANEL:

• 3 Selectable wrapping programs
• F01 – 1 – Double cycle (Upwards/Downwards)
• F01 – 2 – Single cycle (Only upwards or only downwards)
• F01 – 3 – Push-buttons for manual functions
• F12 – Wrapping cycle with altimeter (Photocell Off)
• F22 / F23 – Top sheet cycle
• F29 – Softstart cycle to apply manually corner protectors
• Softstart cycle to reduce film tear on sharp pallet angles

TECHNICAL FEATURES:

• Diameter Ø 1.700 mm
• Max. load dimensions 1.200 x 1.200 mm
• Rotation of the arm by means of high resistance ball bearing
• Load height sensing photocell
• Acceleration / Deceleration ramps controlled by frequency changer
• Spool carriage upwards/downwards speeds controlled by frequency changer
• Beeper at cycle start and phase stopping at cycle end
• Emergency mushroom button according to CE Norms
• Positioning bracket to load the pallet correctly is included into the delivery
• Safety bumper protection against collision
• Mechanical button to re-arm the machine according CE Normatives Ø 22mm

POWER REQUIREMENTS

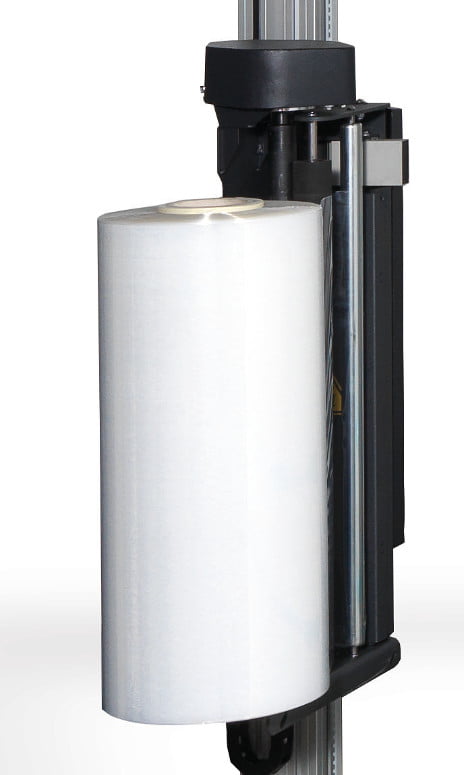

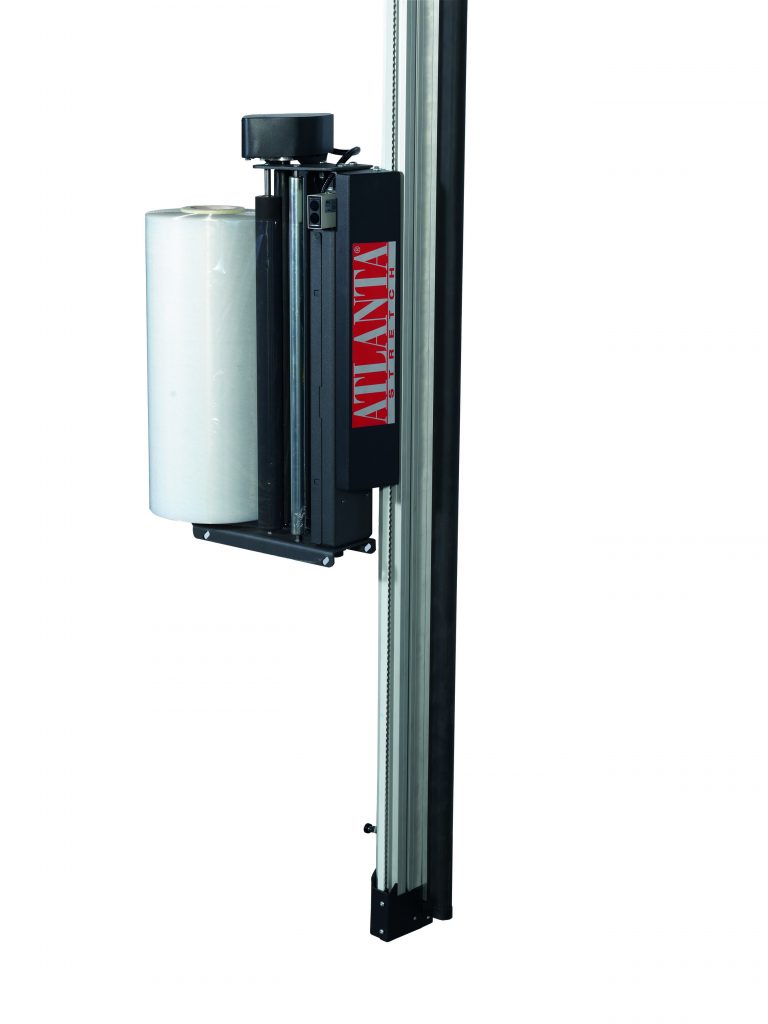

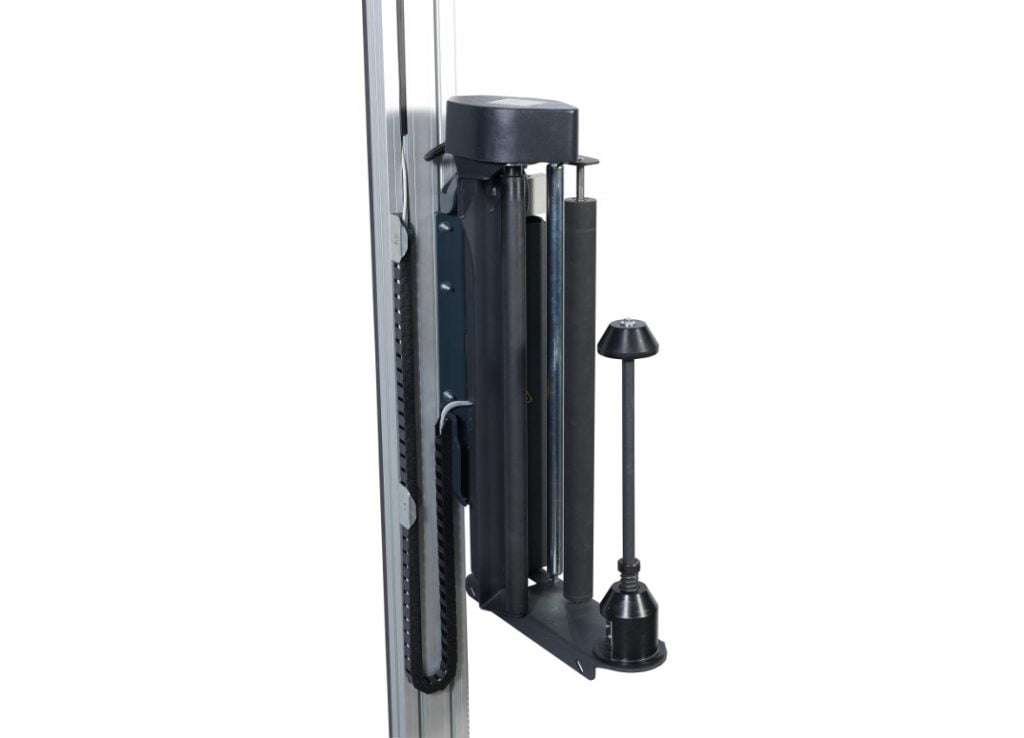

FILM CARRIAGE

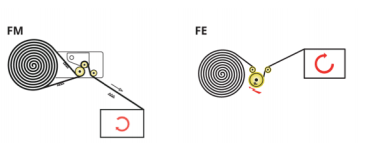

Options

FM – Mechanical Brake.
Standard entry level brake capable of stretching film 0-100% (1x-2x Yield)

FE – Electromagnetic Brake
Heavy Duty brake capable of stretching film 0-100% (1x-2x Yield)

WARRANTY INFO

• Please visit our warranty page for current warranty info

MELBPACK DISCRIPTION

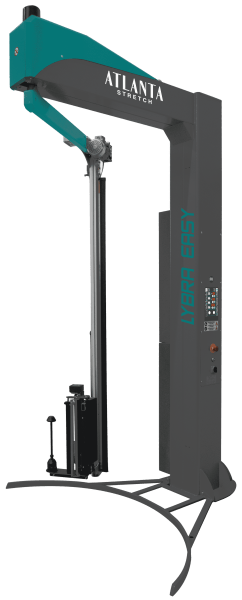

ATLANTA LYBRA EASY

LAYOUT

THE ADVANTAGE OF ATLANTA MACHINE’s
Atlanta stretch are on of the largest machine builders in the world, trusted for the high quality machine design and robustness. Buying an Atlanta machine through Melbpack you have the backup from Melbpack and Atlanta Stretch.

MODULAR DESIGN
Atlanta stretch wrapping machines are of modular design, they all use the same parts where they can, increasing spare parts availability.

USE OF COMMERCIAL COMPONENTS AND INVERTERS
Atlanta Stretch pallet wrapping machines use off the shelf components from major parts providers such as Lenze, Omron, Motovario and micro-detectors. Increasing the quality of the parts and availability of them. Atlanta uses very few custom parts or boards, increasing the life expectancy of the machine due to parts availability and interchangeability of the parts.

QUESTIONS

Where and who by is this Automatic pallet wrapper built?
The Lybra Easy is built in Italy by Atlanta Stretch, Watch a video below of their build process for turntable pallet wrappers.

Do i need any special power requirements to run this pallet wrapping machine?
No this will fit into any standard 230v AU plug. 10Amp Plug.

Can i run this Machine in Manual mode as i have irregular pallets?
Yes you can, the Lybra easy has a manual mode of operation where you can manually turn the turntable by the interface and control the carriage height manually through the interface.

UPGRADE OPTIONS

STOCK OPTIONS

These options are Bolt on and can be added by MPS, other options requiring changes to the mast or frame etc, will be custom build orders.

• Height sensing photocell for black or shining products (Stock)
• Sonic sensor for items such as wrapping chairs or hollow goods. where infrared or photo logic isn’t suitable.
