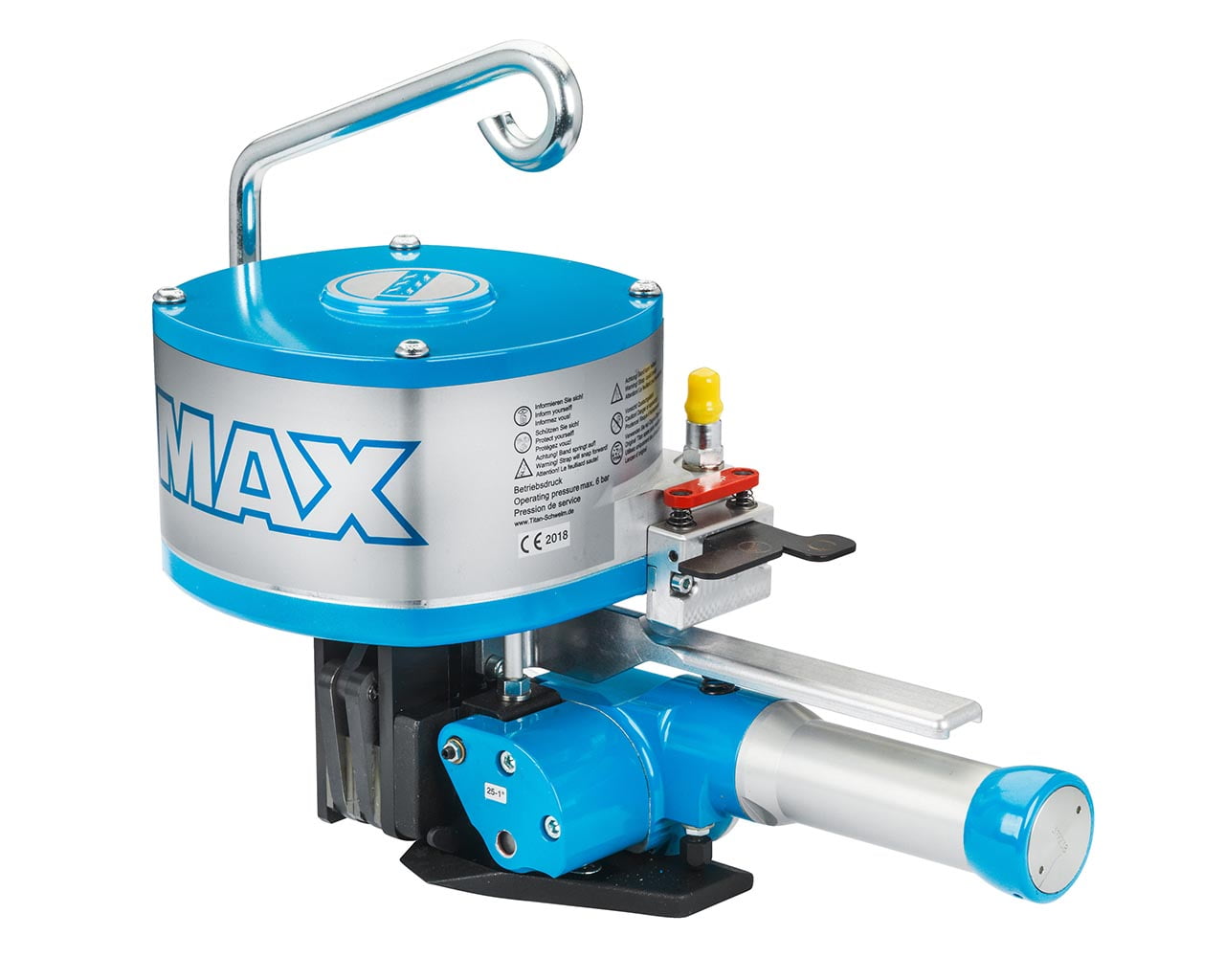

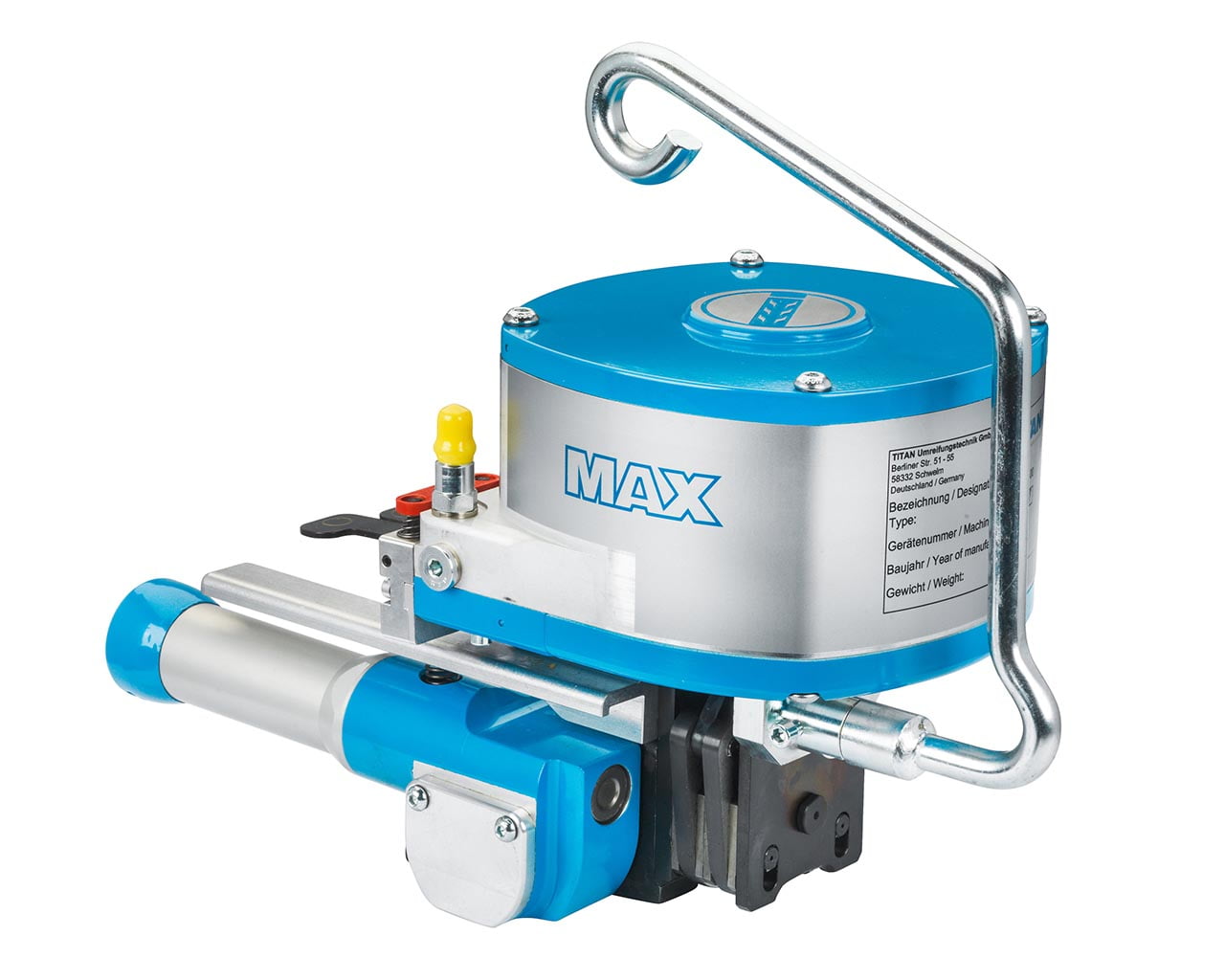

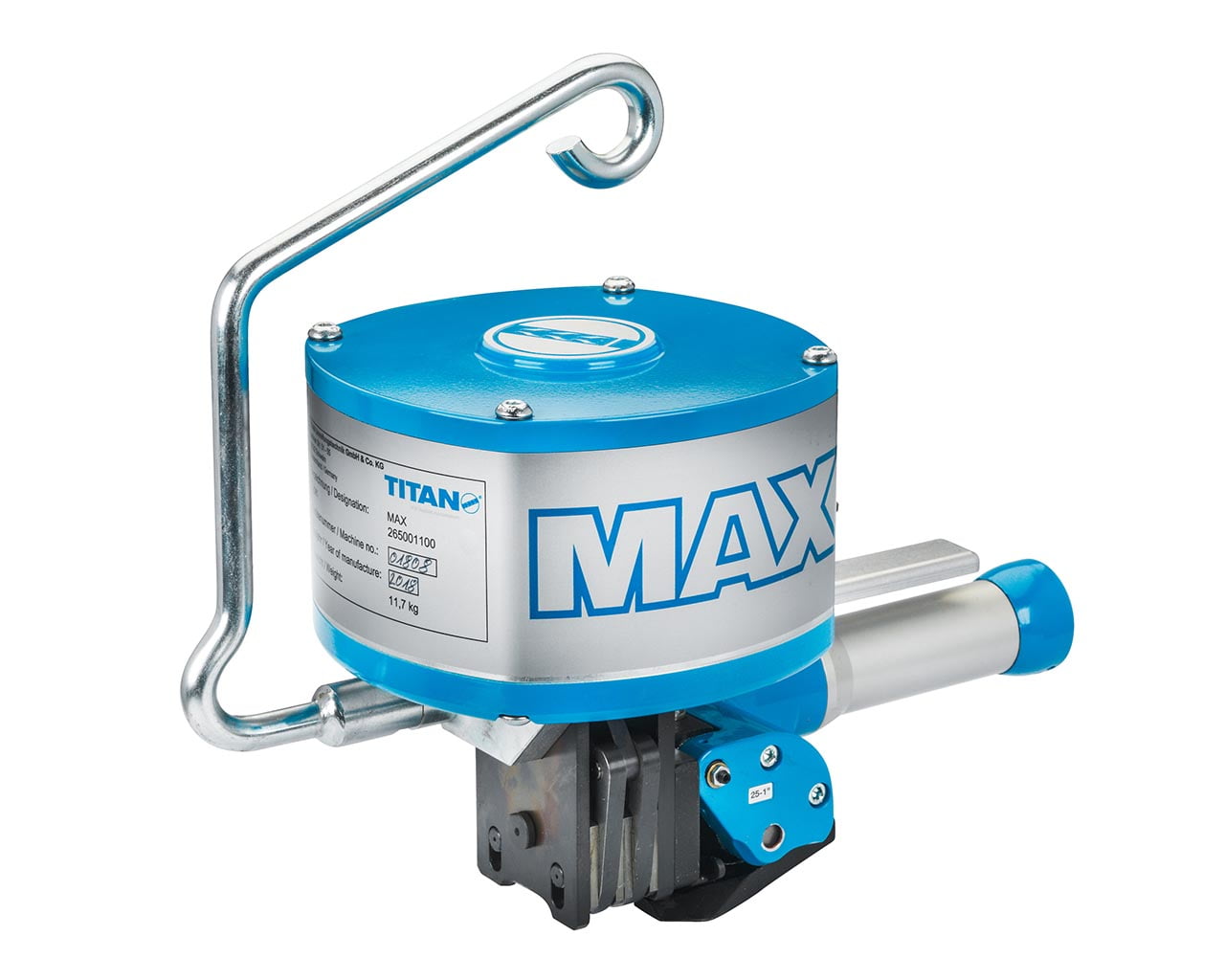

TITAN MAX PNEUMATIC STRAPPING TOOL
TITAN MAX PNEUMATIC STRAPPING TOOL
Product information:
The TITAN MAX pneumatic strapping tool’s performance metrics speak for themselves: Harnessing pneumatic motors, the MAX model generates an immense tensioning force of up to 8,000 N. This tension remains consistently held, courtesy of an incorporated return stop mechanism after the joining process.
Designed for steel straps up to 32 mm in width, secured via a double-notch seal, the MAX exemplifies its performance class with a weight of approximately 11 kg. This makes MAX an ideal lightweight companion for robust applications like assembling pipes and wires, working with slit coils, and managing larger coils.
These tasks demand a tool that is both lightweight and potent, while also being capable of seamlessly operating reliably even in challenging environmental conditions. MAX rises to this challenge with confidence: Its design and technology are testaments to its prowess and reliability.
Advantages
- Strapping of Small round and flat packages
- 8000N of tension
Specification:
TITAN MAX PNEUMATIC 32MM STRAPPING TOOL
Technical data:
Tensioning Drive & Sealing | Pneumatic |
Tension force | max. 8,000 N (adjustable) |
Seal Type | RSK 19; 25; 32 |
Kind of drive (sealing) | Pneumatic |
Dimensions | 450x195x300mm (LxWxH) 17.7X7.7X11.8” (LxWxH) |
Weight | 11.7KG |
Strap feeding speed | 0.11 m/s 0.36 ft/s |
Air pressure | Min. 5 bar flow pressure Max. 6 bar flow pressure |
Air consumption (During tensioning) | 11 Nl / s |
Type of strap | Steel Strap |
Strap width | 19mm, 25mm, 32mm |
Type of seal | Seal-joint (double notch) |
Sealing strength (depending on strap quality, strap dimensions) | up to approx. 75% of the strap breaking load |
