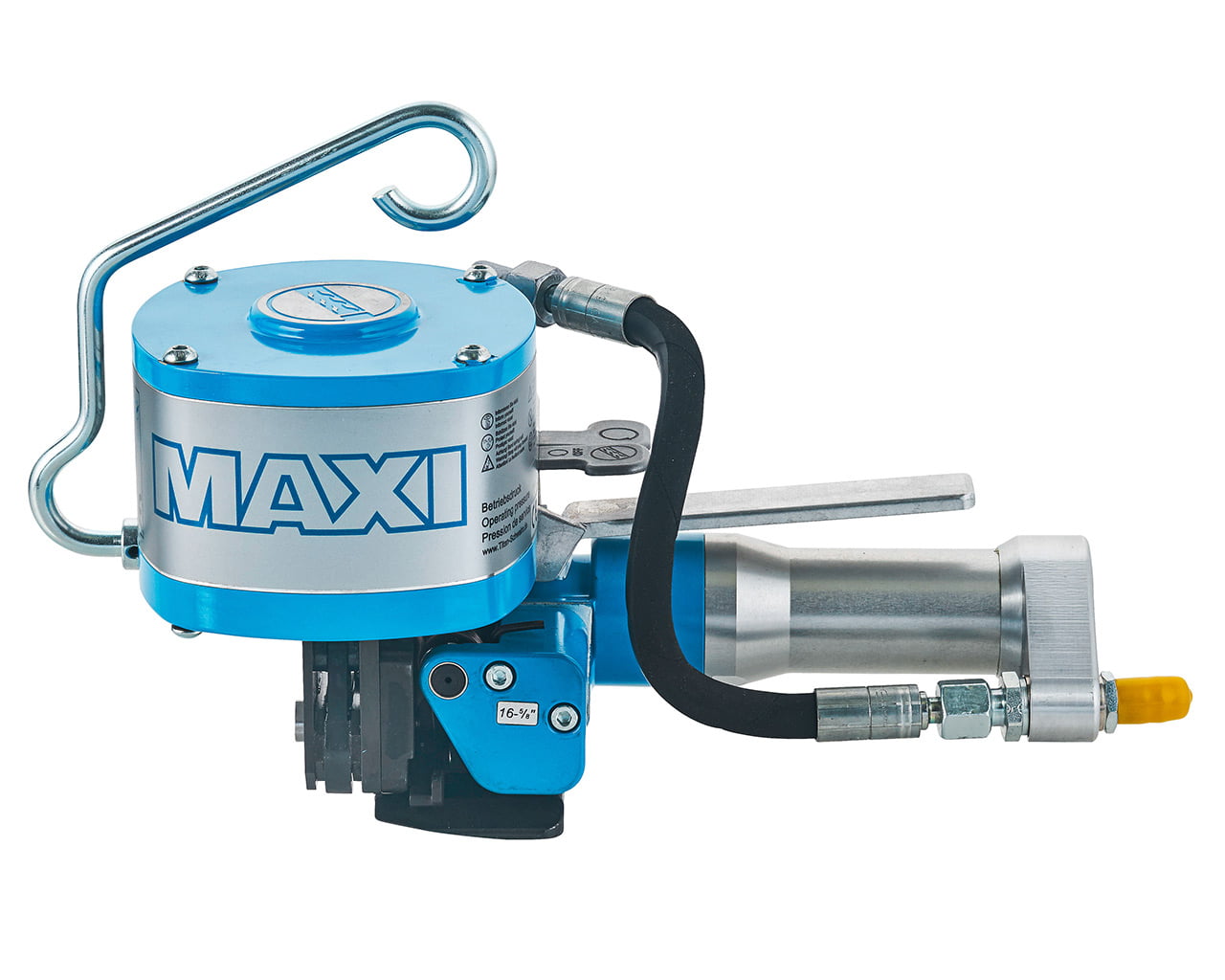

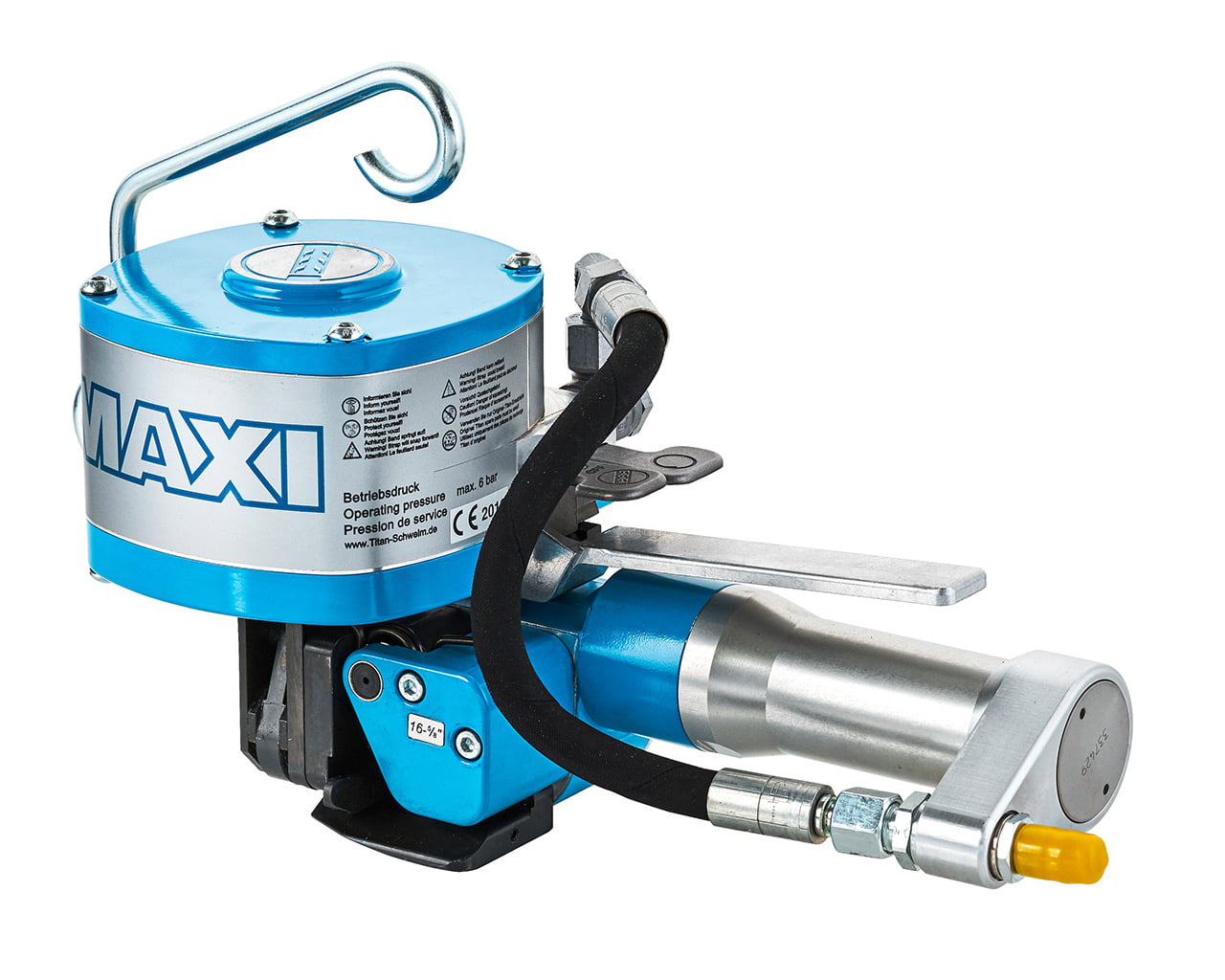

TITAN MAXI-LAH – PNEUMATIC STRAPPING TOOL

Titan Maxi-Lah pneumatic strapping tool combines a pneumatically generated tensioning force of up to 4.000 N with optimum handling characteristics and intuitive operation

SKU: ADL188 Category:

Product information:
Experience unparalleled flexibility even within confined spaces with the MAXI-LAH. Building upon the foundation of the MAXI model, this device seamlessly integrates a pneumatically generated tensioning force, capable of reaching up to 4,000 N, with exceptional handling attributes, intuitive controls, and an ergonomic design.

Its operation remains unobtrusive as it doesn’t require disruptive hoses; only the peripheral connection is visible externally. Joining is accomplished using a seal and notch mechanism. The MAXI-LAH effortlessly accommodates strap widths of 13 mm, 16 mm, and 19 mm. Remarkably lightweight at just 4.2 kg, it stands as a true featherweight within its category. The standout feature of the MAXI-LAH lies in its rear-mounted air connection, ensuring that the standard handling advantages persist even in unique circumstances.



Advantages

  • Lightweight – Only 4.2kg
  • Intuitive operation
  • Ergonomic design

Specification:
TITAN MAXI-LAH 13,16,19MM PNEUMATIC STRAPPING TOOL



Technical data:

Tensioning Drive & SealingPneumatic
Tension forcemax. 4,000 N (adjustable)
Seal TypeRS 13; 16; 19
Kind of drive (sealing)Pneumatic
Dimensions320x145x221mm (LxWxH)

12.6X5.7X8.7” (LxWxH)

Weight4.5KG
Strap feeding speed0.11 m/s
0.36 ft/s
Air pressuremax. 4.0 bar flow pressure (for 1/2 ” strap)

max. 5.0 bar flow pressure (for 5/8 ” strap)

max. 6.0 bar flow pressure (for 3/4 ” strap)

Type of strapSteel Strap
Strap width13mm, 16mm, 19mm
Type of sealSeal-joint (double notch)
Sealing strength
(depending on strap quality, strap dimensions)
up to approx. 50% of the strap breaking load
