TITAN PNEUMATIC SEALER – SCR
Home » Products » Strapping & Strapping Tools » Steel Strapping » Pneumatic Steel Strapping tools » TITAN PNEUMATIC SEALER – SCR
TITAN PNEUMATIC SEALER – SCR
Product information:

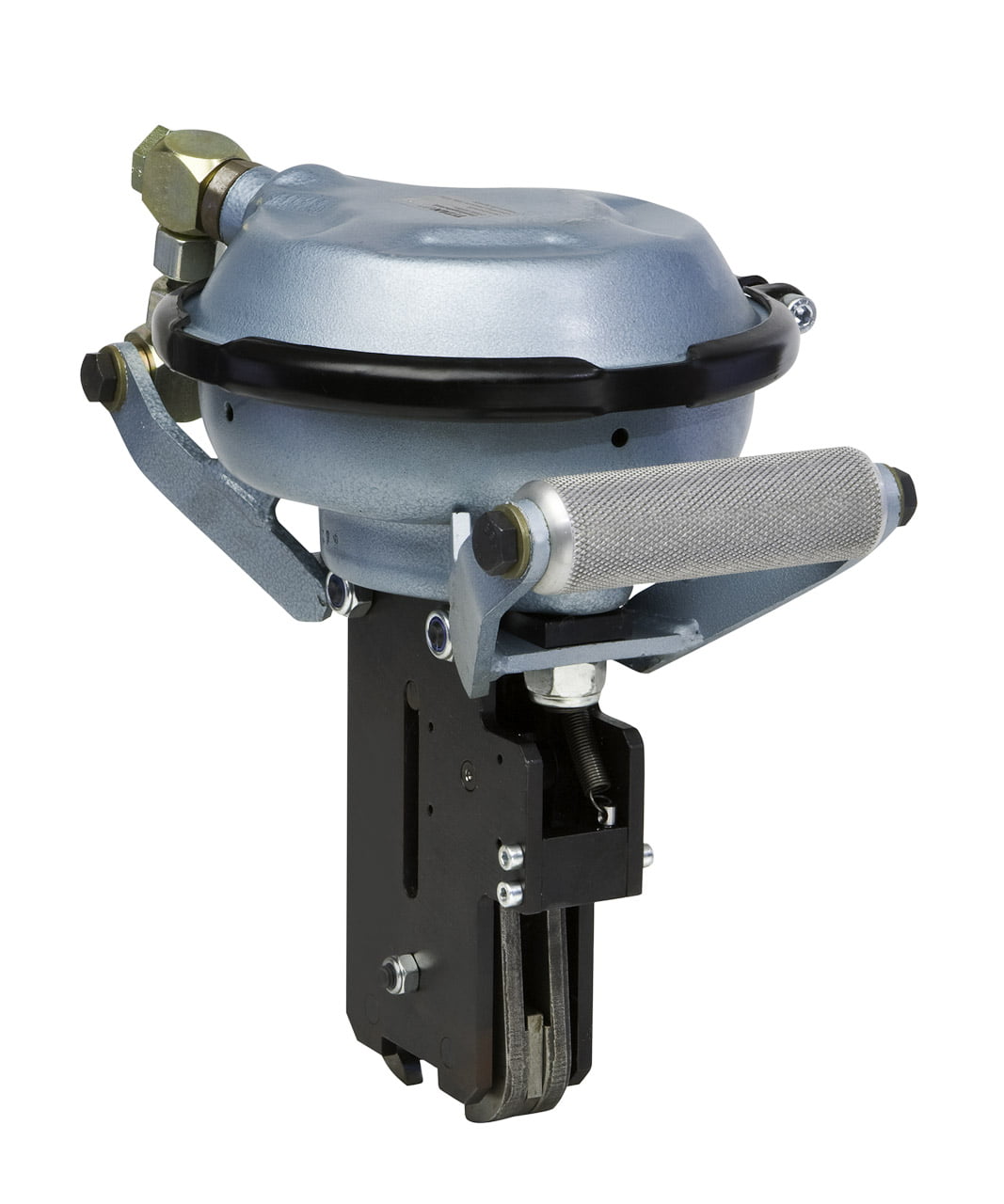

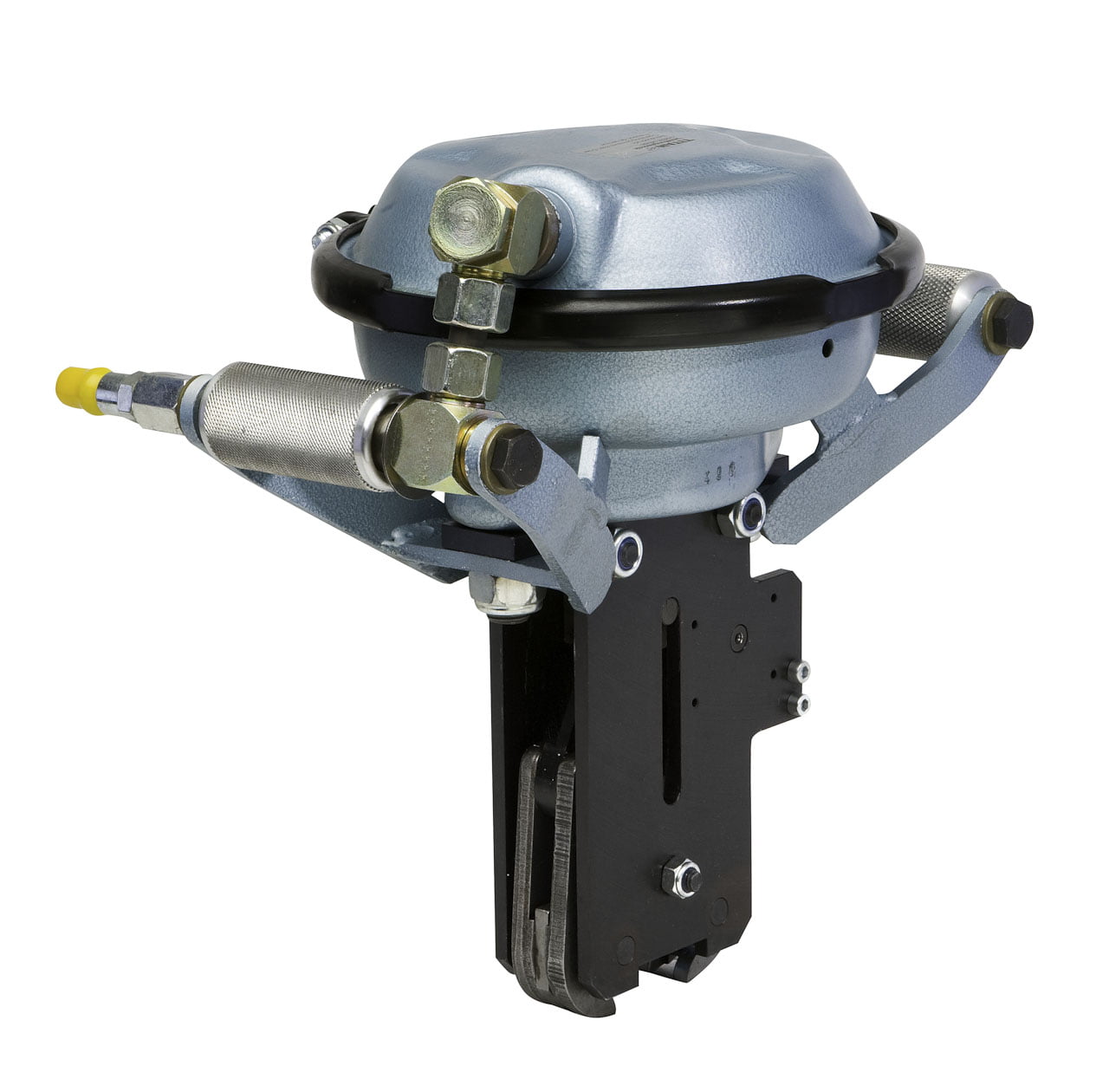

The TITAN SCR, a pneumatic handheld tool dedicated to binding steel straps using crimp seals, operates seamlessly alongside the tensioner PLC. As such, the SCR is meticulously crafted to accommodate strap thicknesses ranging from 32 mm 0.8 mm to 32 x 1.45 mm, and it squarely fits within the category of sealers intended for Lifting & Lashing applications.
The standout attribute of this tool lies in its capability to effectuate crimp seal connections with a singular crimping action. These crimp seals not only facilitate shock absorption but also permit slight movement of the strap within the seal. This distinct feature proves particularly pivotal in scenarios like maritime and rail freight transportation, where any strapping irregularity could lead to severe repercussions.
Advantages
- Sealer for Lifting and Lashing
- Dependable for heavy goods transport
Specification:
SCR 32MM STRAPPING TOOL
Technical data:
Kind of drive (Sealing) | Pneumatic |
Seal Type | NCR |
Dimensions | 300x370x360mm (LxWxH) 11.8×14.6×13.8” (LxWxH) |
Weight | 10KG |
Air pressure | max. 7 bar flow pressure |
Type of strap | Steel strap |
Strap width | 32mm |
Kind of seal | Crimp joint (single notch) |
Sealing strength (depending on strap quality, strap dimensions) | up to 85 – 95% of the strap breaking load |
View the rest of our range and frequently asked questions about pneumatic steel strapping hand tools
